Cable & pipe spacer fastening clip offers a quick and secure solution for installing fire protection cables & steel-armored pipes on on walls, ceilings and floors.
Its design allows for easy mounting without removing clip screws, reducing installation time and effort.
This pipe spacer fastening clip ensures a strong hold for various electrical and fire safety applications.
Material: Steel-Zinc Plated / SS / Aluminum.

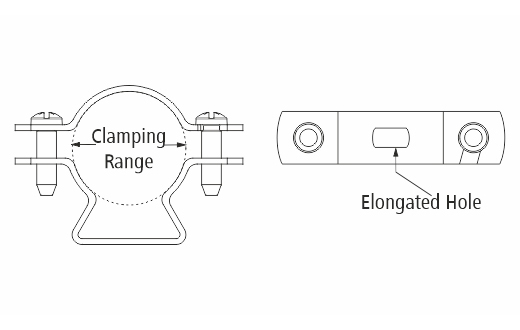

| Part Number | EN | Imperial (in) | Clamping Range (mm) | Elongated Hole |
|---|---|---|---|---|
| DSF-M18 | M18 | - | 17 - 19 | 10 x 6.5 |
| DSF-M20 | M20 | 1/2 | 19 - 21 | 10 x 6.5 |
| DSF-M22 | M22 | - | 21 - 23 | 10 x 6.5 |
| DSF-M25 | M25 | 3/4 | 24 - 29 | 10 x 6.5 |
| DSF-M32 | M32 | 1 | 30 - 38 | 10 x 6.5 |
| DSF-M40 | M40 | 1 1/4 | 39 - 48 | 10 x 6.5 |
| DSF-M50 | M50 | 1 1/2 | 48 - 54 | 10 x 6.5 |
| DSF-M60 | M60 | 2 | 54 - 63 | 10 x 6.5 |
| DSF-M73 | M73 | - | 72 - 74 | 10 x 6.5 |
