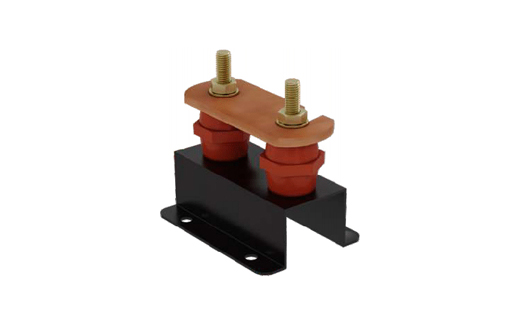

Disconnecting Link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.
• Copper Bar: EC Grade 50mm x 6mm.
• Fittings: Brass, M10 x 35mm Bolt & Nuts.
• Base: MS Black Powder Coated Channel.
• Insulator: DMC Polyester Insulator (32mm x 50mm).
| Length (mm) | Width (mm) | Height (mm) |
|---|---|---|
| 125 | 90 | 90 |

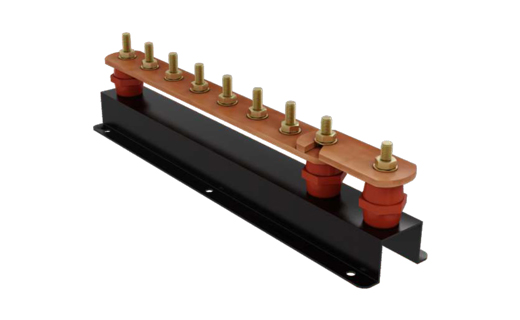

Signle Disconnecting Link
• Single mounting hole for lug attachment.
• EC Grade Copper.
• Bare and Tin Plated.
| No. of Way | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 2 to 30 | 275 to 1825 | 90 | 90 |

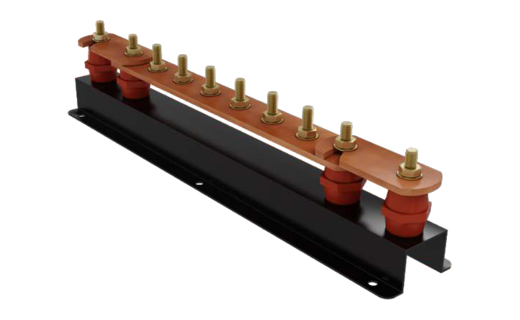

Twin Disconnecting Link
• Single mounting hole for lug attachment.
• EC Grade Copper.
• Bare and Tin Plated.
| No. of Way | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 2 to 30 | 350 to 1900 | 90 | 90 |
