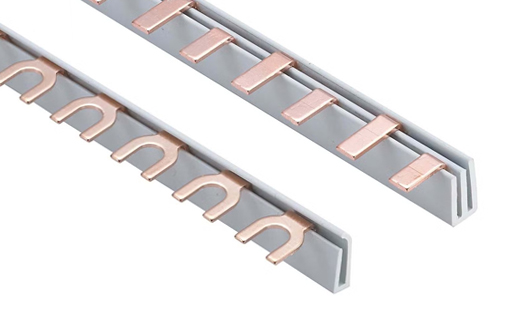

The present of MCB busbar changed the outdated connection ways of Miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.
• It has advantages of security and convenience to install.
• Material is of fire-resistant PVC insulation and EC grade copper (Bare and Tin Plated).
| No. of Poles | Rated Current | No. of Way | Cross Section | Length |
|---|---|---|---|---|
| 1P | 100 A | 56 | 17.8 mm | 1 mtr |
| 2P | 100 A | 27 | 17.8 mm | 1 mtr |
| 3P | 100 A | 18 | 17.8 mm | 1 mtr |
| 4P | 100 A | 14 | 17.8 mm | 1 mtr |

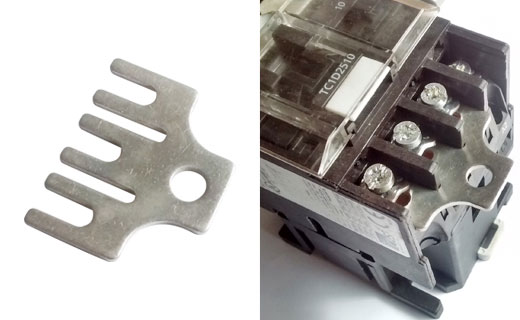

3 way Contactor Fork Pin
• Single mounting hole for lug attachment.
• EC Grade Copper.
• Bare and Tin Plated.
| No. of Way | Rated Current | Cross Section | Hole Dia. |
|---|---|---|---|
| 3 | 100 A | 17.8 mm | 6.5 mm |
