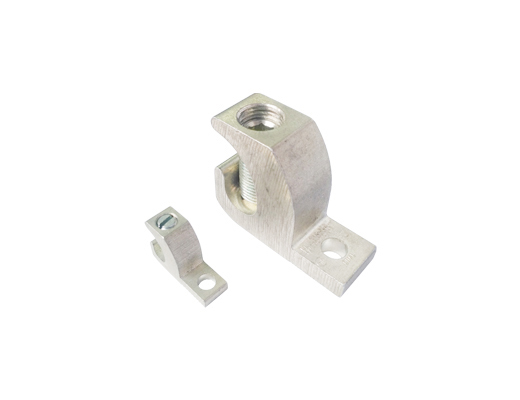

Aluminum lay-in lugs are designed for quick and easy installation, making them an excellent choice for grounding applications.
Electro tin plated lay-in lugs provide a secure and reliable connection, allowing wires to be easily bonded to various surfaces in grounding applications
Ensuring maximum electrical conductivity and long-term durability
Aluminium alloy 6061 body with MS / SS screw

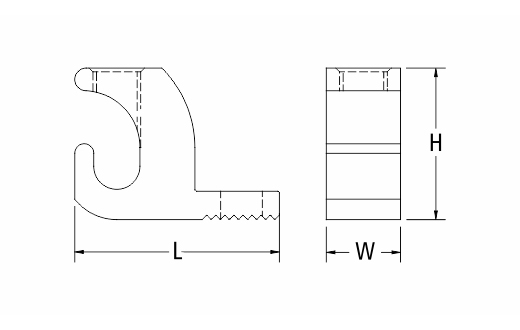

| Wire Range | L (mm) | W (mm) | H (mm) | Screw Type |
|---|---|---|---|---|
| 14 - 4 AWG | 27.0 | 9.6 | 20.0 | Slotted |
| 14 - 2 AWG | 35.5 | 12.5 | 23.0 | Sotted |
| 14 - 1/0 AWG | 38.0 | 15.1 | 28.0 | Sotted |
| 6 - 250 AWG | 56.0 | 20.5 | 43.2 | Sotted |
