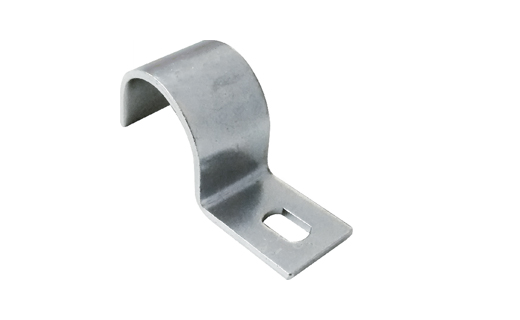

Single lobe heavy duty saddle for pipes and cables.
• Material: Steel-Zinc Plated / SS

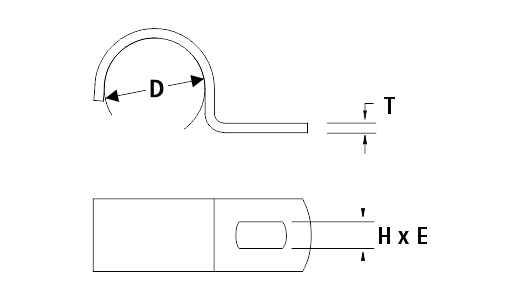

| Part Number | Size | D (mm) | H x E (mm) | T (mm) |
|---|---|---|---|---|
| DC-M6 | M6 | 6 | 10 X 6.5 | 2 |
| DC-M10 | M10 | 10 | 10 X 6.5 | 2 |
| DC-M12 | M12 | 12 | 10 X 6.5 | 2 |
| DC-M14 | M14 | 14 | 10 X 6.5 | 2 |
| DC-M16 | M16 | 16 | 10 X 6.5 | 2 |
| DC-M18 | M18 | 18 | 10 X 6.5 | 2 |
| DC-M20 | M20 | 20 | 10 X 6.5 | 2 |
| DC-M25 | M25 | 25 | 10 X 6.5 | 2 |
| DC-M32 | M32 | 32 | 10 X 6.5 | 2 |
| DC-M40 | M40 | 40 | 10 X 6.5 | 2 |
| DC-M47 | M47 | 47 | 10 X 6.5 | 2 |
| DC-M50 | M50 | 50 | 10 X 6.5 | 2 |
| DC-M63 | M63 | 63 | 10 X 6.5 | 2 |
Single lobe heavy duty saddle for pipes and cables.
• Material: Steel-Zinc Plated / SS
| Part Number | Ø (mm) | A (mm) | B (mm) | T (mm) |
|---|---|---|---|---|
| DC | 5 | 33 | 12 | 1.5 |
| DC | 6 | 35 | 12 | 1.5 |
| DC | 7 | 41 | 12 | 1.5 |
| DC | 8 | 43 | 12 | 1.5 |
| DC | 9 | 45 | 12 | 1.5 |
| DC | 10 | 47 | 12 | 1.5 |
| DC | 12 | 51 | 15 | 1.5 |
| DC | 12 | 51 | 20 | 2 |
| DC | 14 | 55 | 15 | 1.5 |
| DC | 16 | 60 | 15 | 1.5 |
| DC | 18 | 64 | 15 | 1.5 |
| DC | 20 | 69 | 15 | 1.5 |
| DC | 22 | 72 | 15 | 1.5 |
| DC | 25 | 79 | 15 | 1.5 |
