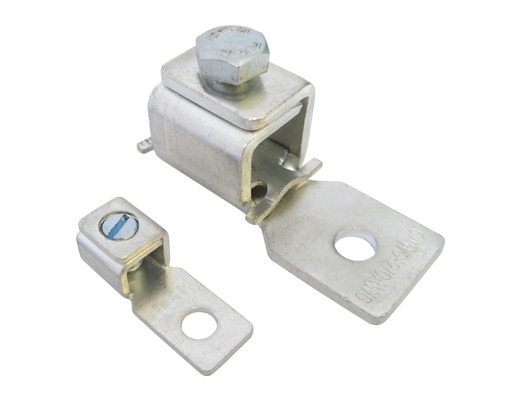

EC Grade copper screw lugs are designed for connecting various cables to equipment pads or terminal blocks, making them particularly suitable for light industrial applications..
The tongue and body are a one piece design
The pressure bar balances the pressure along the conductor and stops the screw from damaging the cable
Steel - Zinc plated screw

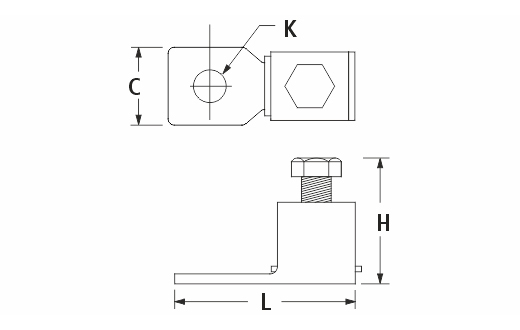

| Wire Range | C (mm) | H (mm) | K (mm) | L (mm) | Stud | Screw Type |
|---|---|---|---|---|---|---|
| 1/0 - 4/0 AWG | 25.0 | 41.5 | 10.5 | 58.5 | 3/8 | Hex Head |
| 14 - 4 AWG | 12.7 | 13 | 6.5 | 34 | 1/4 | Slotted |
